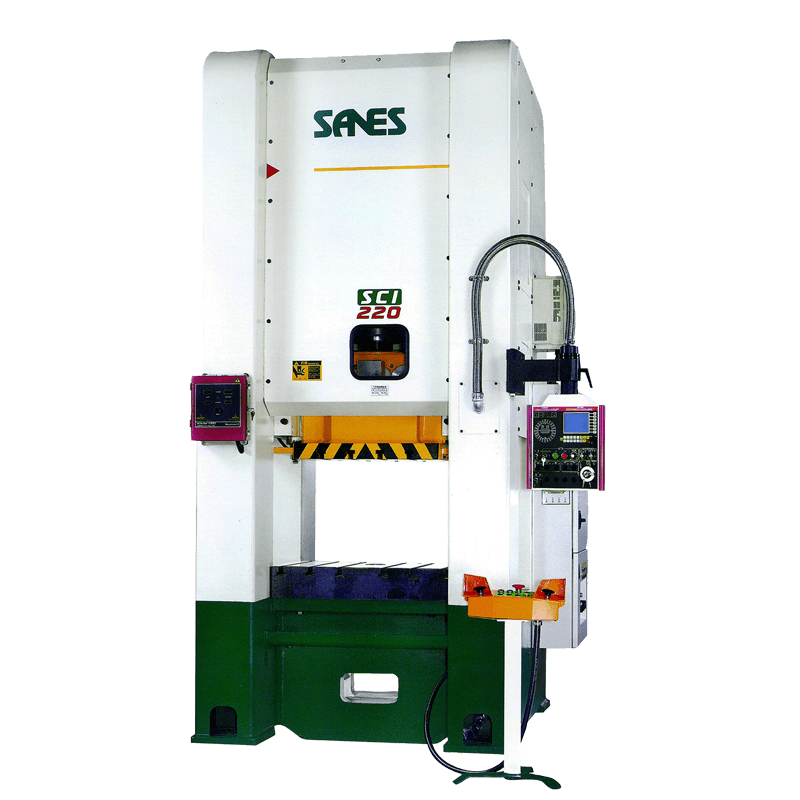

sc1-220

Link Presses

SC1 Series

  • Operates under high approach speed, low forming speed and high return speed.
  • Reduces noise and vibration considerably during operation. Improve operation environment greatly.
  • Realize high precision, high rigidity and high throughput production.

SPECIFICATIONS

Model Unit SC1-120 SC1-220 SC1-315 SC1-500 SC1-800
Capacity Ton 120 220 315 500 800
Tonnage Rating Point
(Above B.D.C)
Short type mm 10 10 10 10 13
Long type mm 6 8 10 10 10
Stroke Length Short type mm 125 150 160 160 200
Long type mm 200 250 280 300 400
Stroke Per Minute Short type S.P.M 35-85 35-75 30-65 25-50 25-45
Long type S.P.M 25-55 20-50 15-40 15-35 12-25
Die Height Short type mm 375 400 480 550 600
Long type mm 420 520 620 650 800
Slide Adjustment mm 80 90 100 120 120
Slide Area mm 650x600 750x700 850x800 950x900 1100x1000
Bolster Area mm 850x750 950x820 1050x900 1150x1100 1300x1200
Main Motor HPxP 15HP(INV) 25HP(INV) 30HP(INV) 50HP(INV) 100HP(INV)
Required Pressure kg/cm2 5 5 5 5 5
-Due to continuous research and development, the machine design and specifications are subject to change without prior notice.
-Custom specifications are available upon request.
